Architecture

Overview of InfraKitchen's system architecture and how its components work together.

Overview

InfraKitchen’s architecture can be divided into three planes.

  • Control Plane - Decides what should happen, independent of how infrastructure is actually provisioned. Implemented today by the API Server, Scheduler, Worker, and PostgreSQL:
    • API Server - The entry point
    • Identity & Access - Users, teams, roles, authorization
    • Projects & Environments - Organizational/resource boundaries
    • Templates & Resources - What InfraKitchen manages
    • Controllers & Reconciliation - Continuously makes reality match desired state
  • Execution Plane - A pluggable execution engine driven by a controller to carry out a task. Once a run finishes, it reports its status back, closing the reconcile loop:
    • Managed OpenTofu/Terraform - Managed install, runs inside a Worker
    • BYO OpenTofu/Terraform - Bring-your-own binary (selectable per resource/executor), runs inside a Worker
    • Kubernetes CRD - A Controller managing Worker Pods
  • Resource Plane - The actual infrastructure that ends up running (AWS, GCP, Azure, and others such as Kubernetes). It lives entirely outside InfraKitchen’s own processes; InfraKitchen only manages it remotely.

High-Level Architecture

InfraKitchen follows a GraphQL-first architecture with a React frontend and a backend made up of three independent processes - an API Server (FastAPI), an asynchronous Worker, and a Scheduler - all connected through PostgreSQL (task queue, notification outbox, and LISTEN/NOTIFY pub/sub). Besides the GraphQL API consumed by the frontend, the API Server also exposes an MCP Server for AI agents, and integrates with external Identity Providers (login), Cloud Providers (provisioning), and Notification Providers (e.g. Slack).

Components

  • User - The person using InfraKitchen, either directly through the Web UI or indirectly through an AI agent
  • Web UI (React/TypeScript) - User interface for managing infrastructure, talking to the backend exclusively through GraphQL (queries, mutations, and subscriptions)
  • AI Agent - A third-party AI assistant that interacts with InfraKitchen on the user’s behalf through the MCP Server
  • API Server (Python/FastAPI) - The backend process, exposing:
    • GraphQL API (Strawberry) mounted at /api/graphql - queries, mutations, and subscriptions for the Web UI
    • Subscription Publisher - listens for Postgres LISTEN/NOTIFY events and pushes live updates to GraphQL subscriptions
    • Authentication - SSO/OIDC login routes that verify users against external Identity Providers and issue InfraKitchen JWTs
    • MCP Server - exposes InfraKitchen’s GraphQL API and docs as MCP tools for AI agents
    • Notification Dispatcher - claims items from the notification outbox and routes them to in-app subscriptions or external Notification Providers
  • Scheduler - APScheduler process that enqueues scheduled jobs and recurring entity actions into the task queue
  • Worker - Claims tasks from the PostgreSQL task queue (woken up via LISTEN/NOTIFY, with a polling fallback) and executes the entity pipelines (provision, destroy, dry run, …) by invoking OpenTofu/Terraform
  • OpenTofu/Terraform - Infrastructure-as-Code execution engine, invoked by the worker through the OtfClient shell wrapper
  • PostgreSQL - Relational database for storing InfraKitchen’s own application data, the task queue, the notification outbox, and LISTEN/NOTIFY pub/sub for logs, events, and notifications
  • Identity Providers - External SSO providers (Google, GitHub, Microsoft, …) used to authenticate users
  • Cloud Providers - External cloud platforms (AWS, GCP, Azure, …) where infrastructure is provisioned and destroyed
  • Notification Providers - External channels (e.g. Slack) used to deliver notifications outside the Web UI
  • Git Providers - External Git providers (GitHub, GitLab, Bitbucket, Azure DevOps, …) hosting the IaC templates/modules the worker clones before running OpenTofu/Terraform
  • State Storage - External object storage (e.g. S3, GCS) used as the OpenTofu/Terraform backend for storing .tfstate, separate from the Cloud Providers being provisioned

Scenarios

Two concrete scenarios show how the components above interact end-to-end.

User Creates a Resource

Creating a resource just saves its definition — no cloud infrastructure is provisioned yet; that happens in the next scenario.

User Provisions the Resource

Provisioning is asynchronous: the API Server enqueues a task and returns immediately, while the Worker picks it up and drives the actual OpenTofu/Terraform execution in the background.

Domain Model

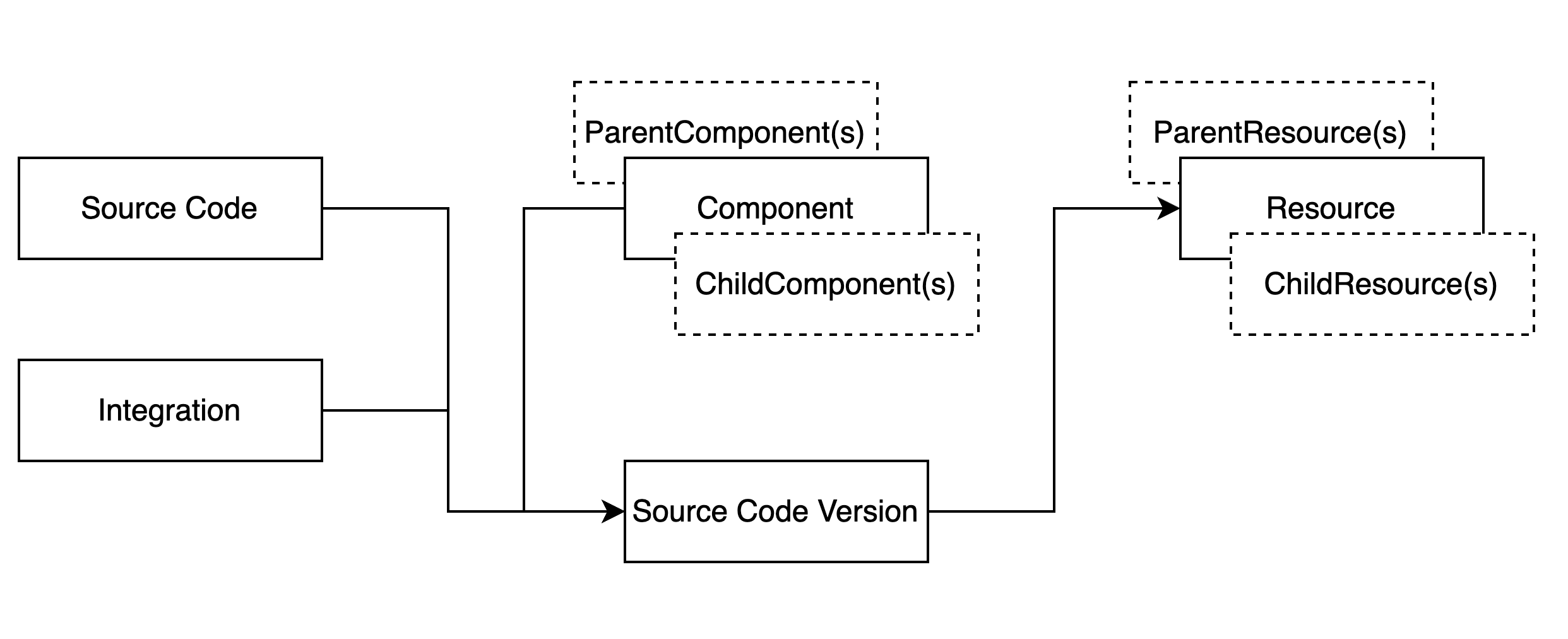

The scenarios above show how components communicate at runtime. Zooming into the data they operate on, InfraKitchen’s backend is organized around a small set of core entities. They relate like this:

  • Source Code - A Git repository reference (URL, provider, language, discovered branches/tags)
  • Source Code Version - A pinned branch or tag of a Git repository, snapshotting the template variables and outputs configuration at that point
  • Template - Reusable infrastructure definitions with parent/child composition, versioned through source code versions
  • Resource - A deployed instance of a template, pinned to a specific source code version, with parent/child dependency links, integrations, secrets, storage backend, and state/status
  • Executor - A runnable unit that pins a Git repository, integrations, secrets, and a storage backend
  • Integration - Credentials and configuration for external providers (cloud, git, notification providers, …)
  • Secret - Sensitive values (e.g. API keys, passwords) attached to resources and executors
  • Storage - Where OpenTofu/Terraform state is kept (e.g. an S3 or GCS backend), configured via an integration
